Broken Tenor Octave Key Repair

tsax_octave1

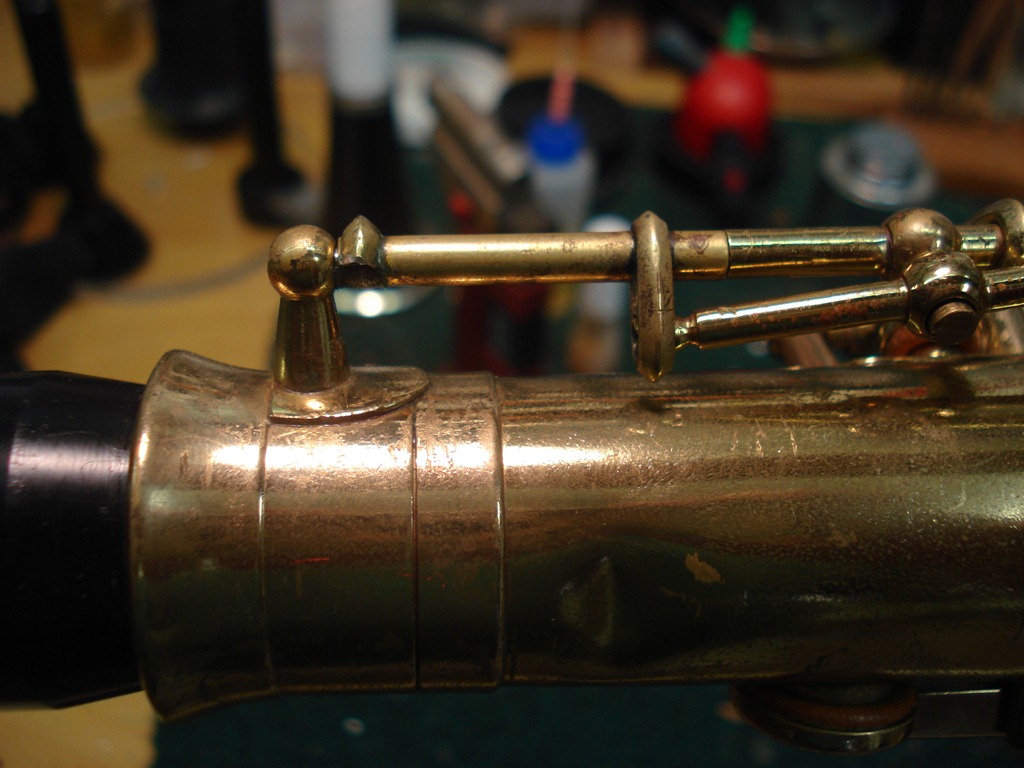

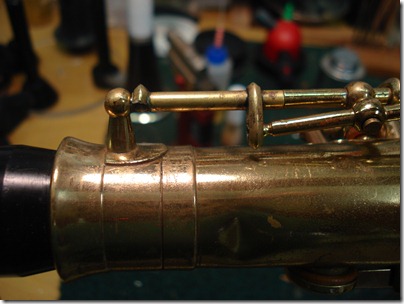

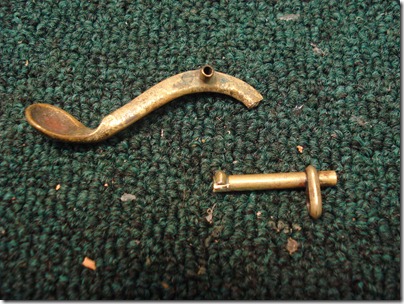

Old Tenor from a school with a broken octave(and piece missing) key.



tsax_octave2

Digging through the “boneyard” I found an old broken sax trill key that will become my replacement part.



tsax_octave3

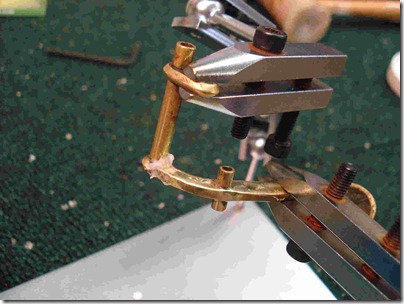

Clamped, aligned, and ready to be silver soldered.



tsax_octave4

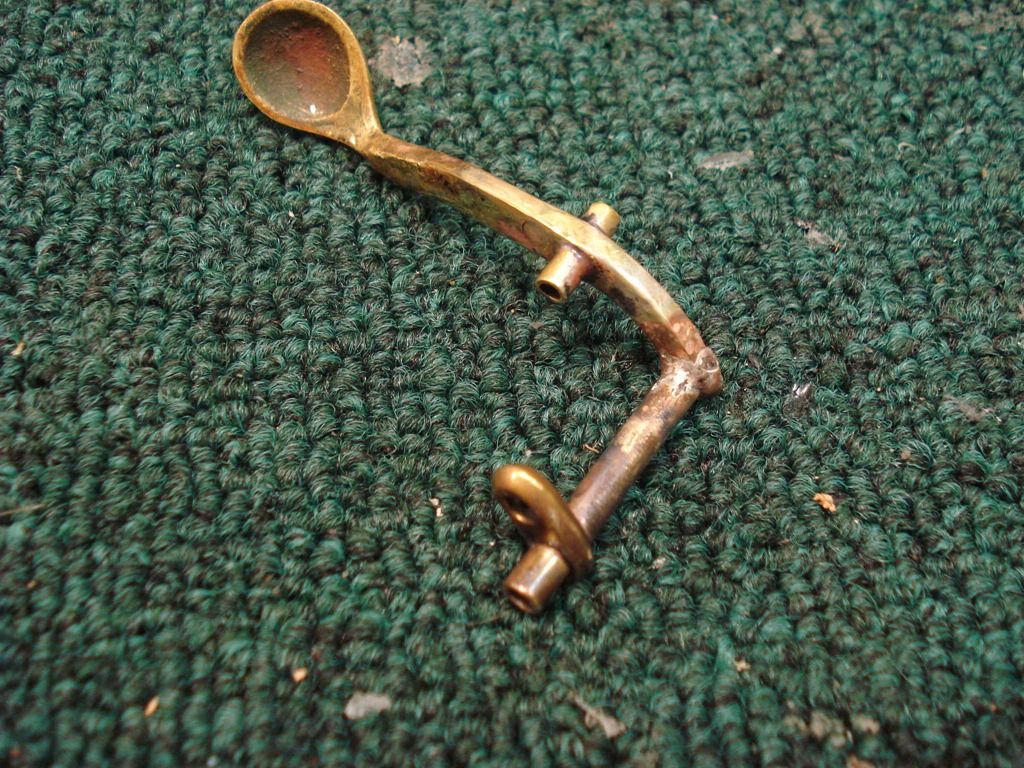

Here’s my Frankenstein Octave Key. I’m keeping the other end in place until after I solder on the riser that will connect with the octave key on the neck.



tsax_octave5

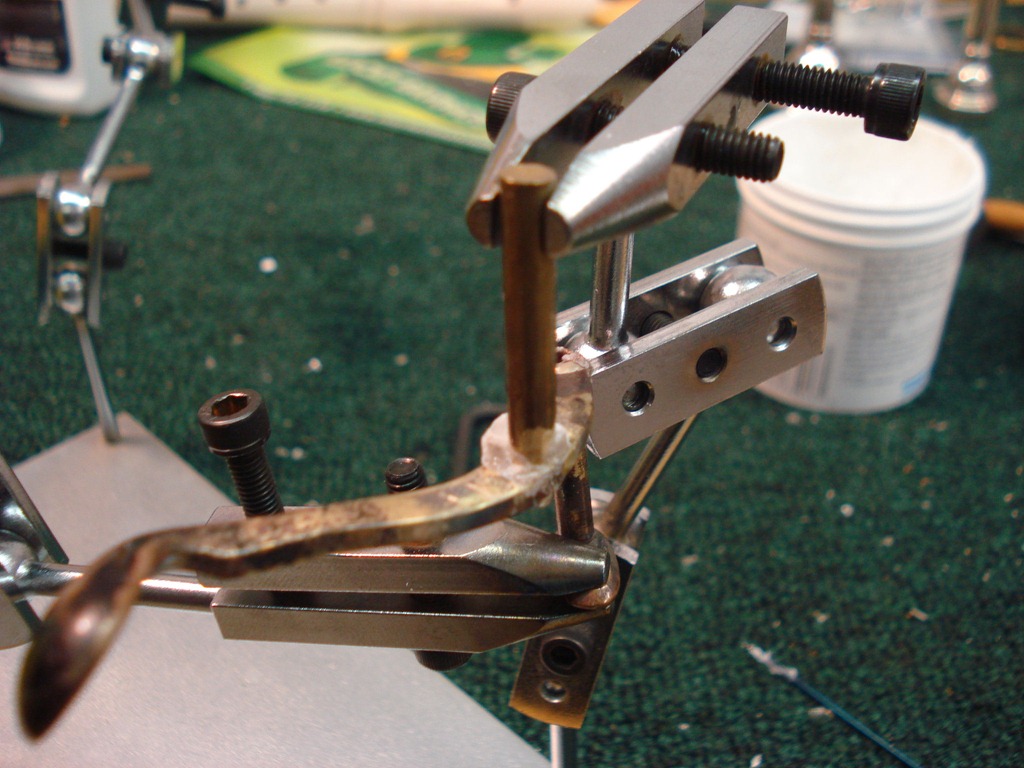

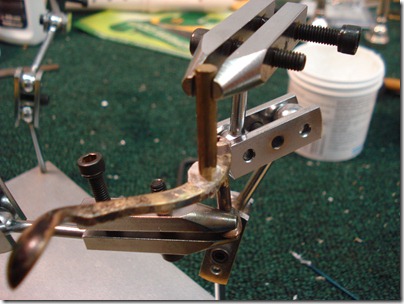

I unsoldered and removed the key tube. Then I ground down a piece of brass drill rod to fit in the hole vacated by the key tube. Clamped and ready for soldering.



tsax_octave6

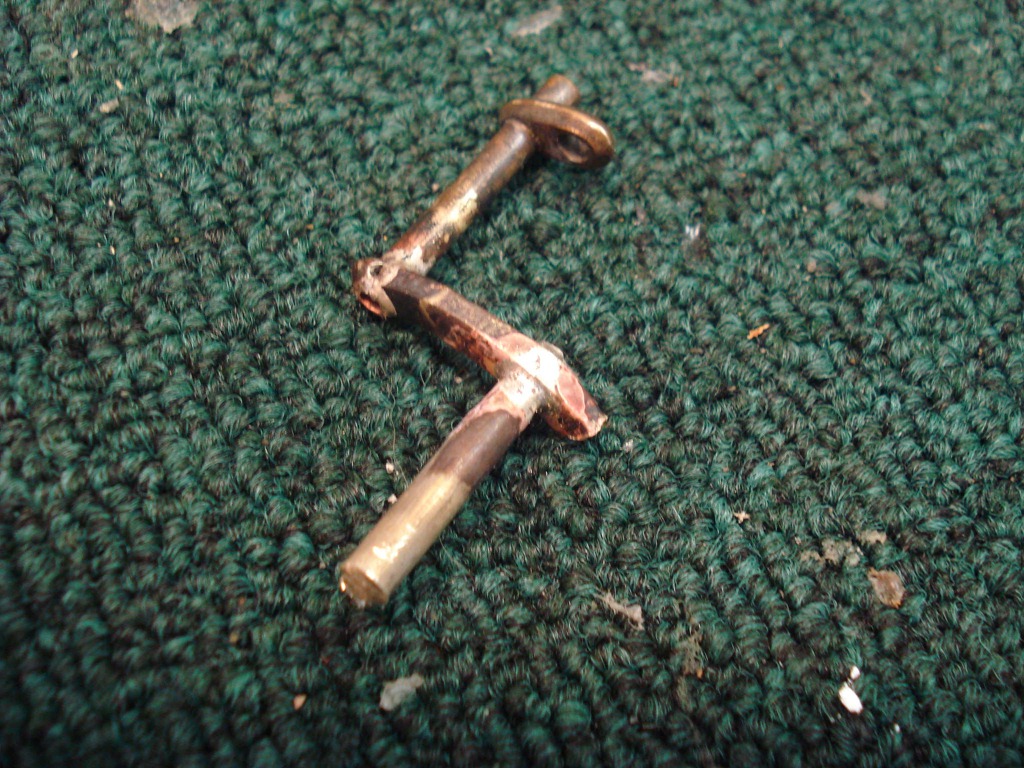

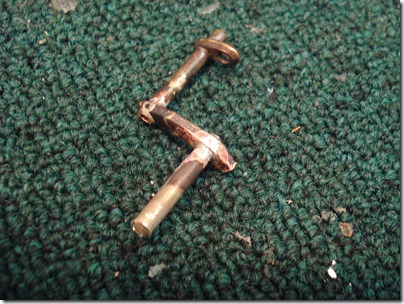

Soldered, unnecessary end cut off, ready for cleaning and buffing.



tsax_octave7

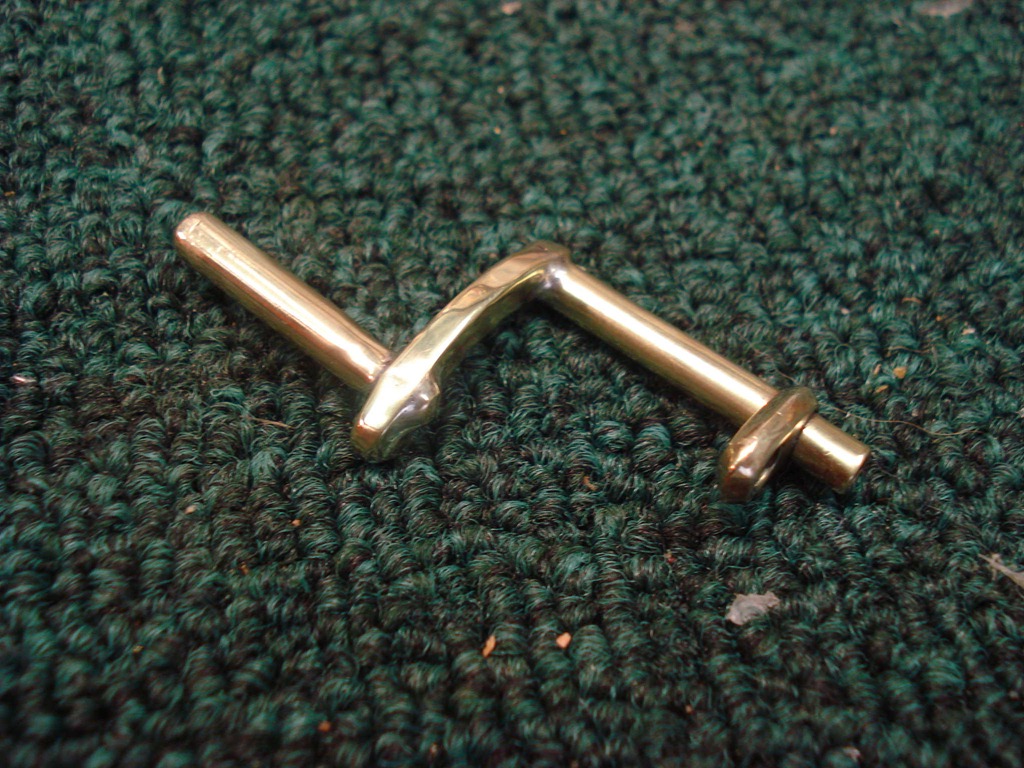

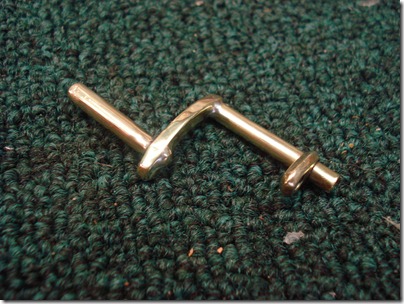

Cleaned and polished. Ready for heat shrink tubing on the riser and cork underneath.



tsax_octave8

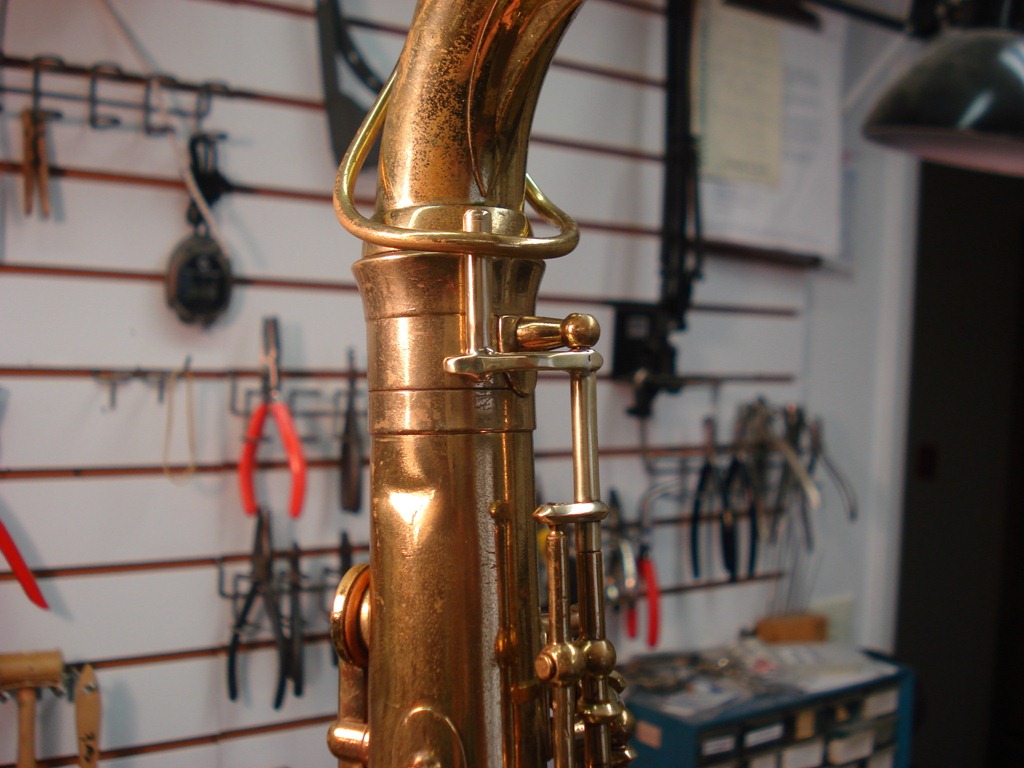

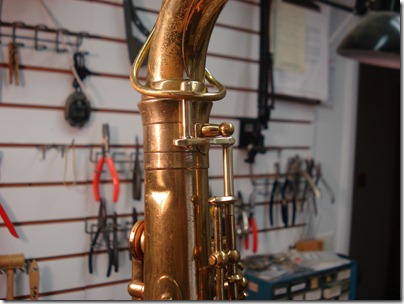

Reassembled and ready to go.
