Split in Trumpet Leadpipe

This trumpet befuddled the band director(and her trumpet playing band director husband) as to why it wasn’t playing well, and how they could feel air escaping. It took me a while, but I finally found the split in the leadpipe. In normal light it was very hard to see the split. Here’s how I fixed it:

split1 split2

Left Pic – Split in leadpipe…about 3 inches long
Right Pic – Sheet brass patch after cutting to preliminary shape



split3split4

Left Pic – Patch cut to final shape
Right Pic – Lacquer removed and patch bent to contour of leadpipe



split5split6

Left Pic – Other view of patch contoured to fit
Right Pic – Wire tied on leadpipe, prior to soldering



split7split8

Left Pic – Soldered, but not cleaned up
Right Pic – Buffed and ready to go

Selmer Mark VI Tenor Repad

The KING of Tenor Saxes was brought in for a total repad. The customer decided on Black Roo (Kangaroo Hide) pads with Gold Reso-Tone Resonators.

Selmer1Selmer2

Left Pic – Ready for disassembly
Right Pic – Notice the duct tape on the Low Eb….UGH!



Selmer3Selmer 4

Left Pic – All disassembled
Right Pic – Keys ready for cleaning



Selmer5Selmer6

Left Pic – Black Roo pads with Gold Reso-Tones
Right Pic – Pad Fitting almost complete



Selmer 8Selmer9

Left Pic – Assembly begins
Right Pic – Lower stack ready



Selmer10Selmer11

Left Pic – Bells Keys on
Right Pic – Upper stack ready

Broken Sax Rod

Tenor sax came in and the palm D key rod had sheared off. This doesn’t happen often but does occasionally. Rods with a small throat(area between the threads and main part of rod) are very susceptible to this type of problem.

brokenrod1brokenrod2

Left Pic – You can see the broken thread section extending out of the post. I’ve partially removed the threaded section here.
Right Pic – The key with the broken rod, now with the threaded section totally out



brokenrod3brokenrod4

Left Pic – Time to find a donor rod…looking for something with the same threads and about the same size or slightly bigger in diameter. Length I’m not too concerned about length, since I can always cut off the extra.
Right Pic – Found one….just slightly bigger in diameter….will have to drill out key and post, but the threads already fit.



brokenrod5brokenrod6

Left Pic – Drilled out and fits perfect.
Right Pic – Rod is too long, but that’s easily solved.



brokenrod7brokenrod8

Left pic – Problem solved, now to cut the slot
Right Pic – This is my slot cutter. The metal sleeve has various holes for different size rods. The blade cuts the slot.



brokenrod9

All done and ready to go.

Contra-Alto Clarinet Crack Repair

CAClarRep5CAClarRep4

Left Photo – Hard to see, but there is a crack running from the metal tube inside the bore to the tenon cap
Right Photo – Used a super thin super glue with a small bottle and teflon flexible tip



CAClarRep3CAClarRep2

Left Photo – You can see the glue in and around the crack
Right Photo – My high tech holding system



CAClarRep1

All back together

Stuck Giardinelli Trumpet Mouthpiece

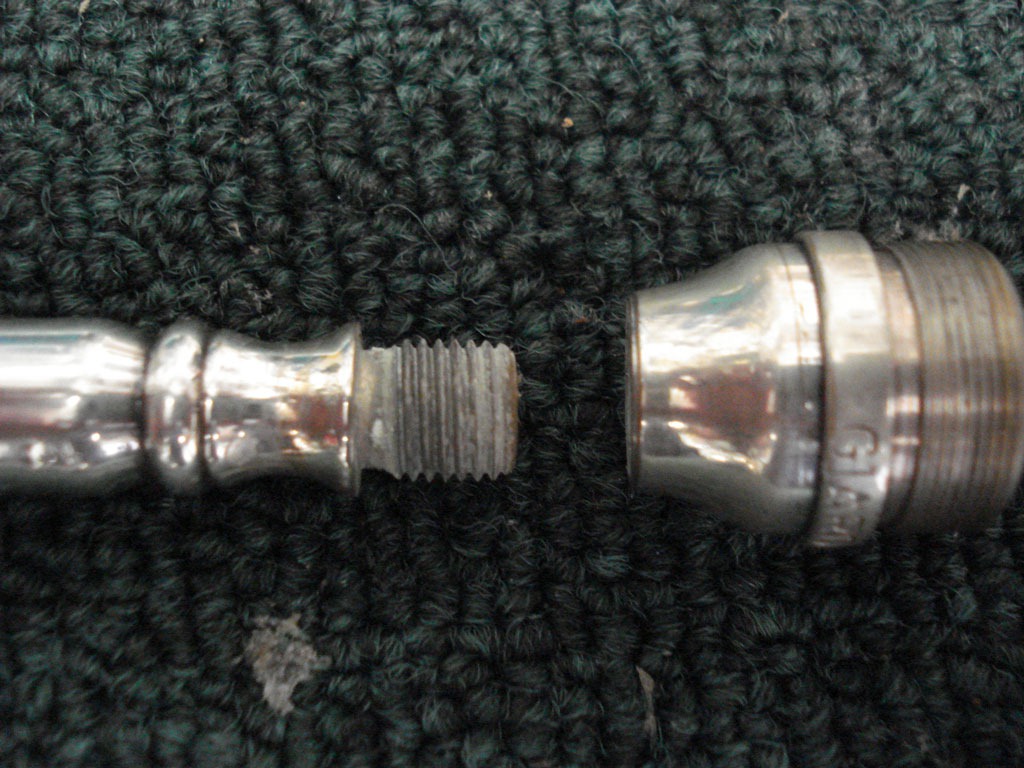

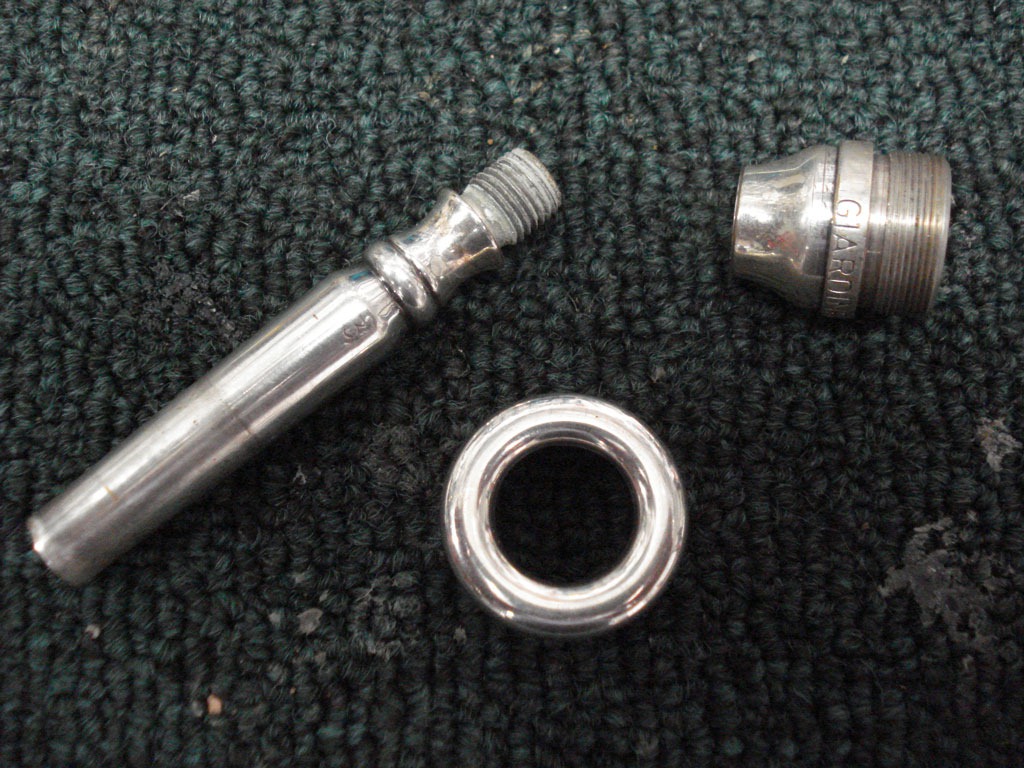

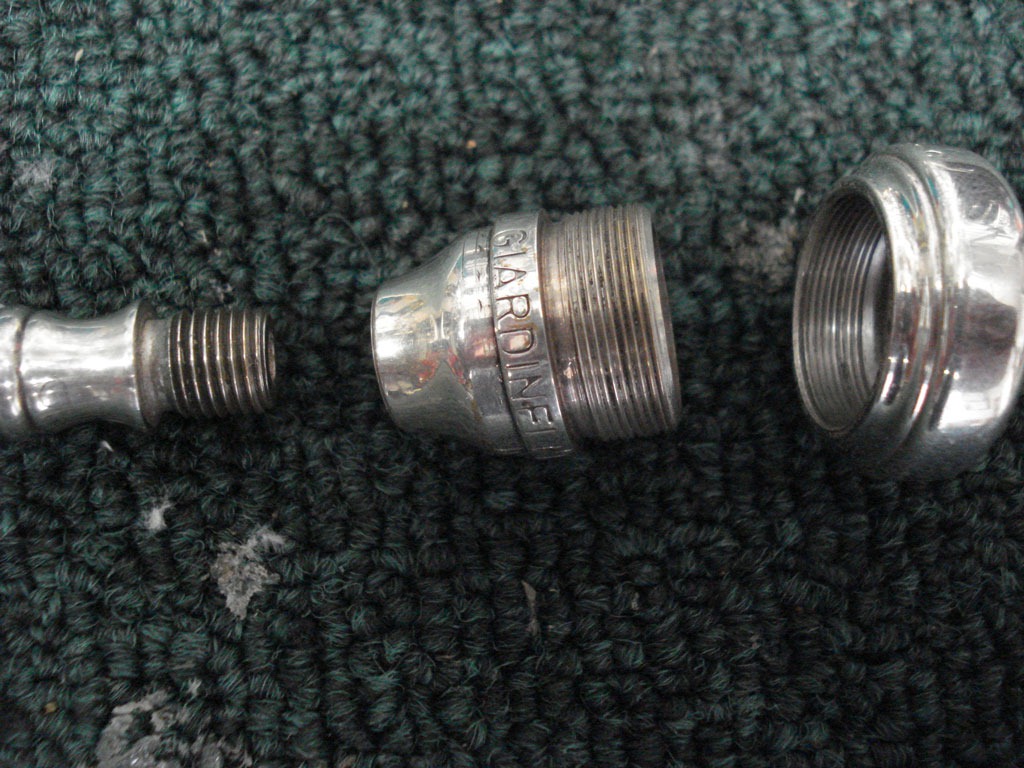

3-Piece Giardinelli Trumpet Mouthpiece where the shank was seized to the bowl section. Whacked it with a rawhide; wrapped it in silicone tape and tried to free it with a 2 pairs of pliers; froze it, then heated the bowl…nada….finally whacked it a few more times with the rawhide, grabbed it wearing 2 heavy rubber gloves, and it popped free. Cleaned the threads and reassembled.

giardinelli1giardinelli2

giardinelli3giardinelli4

Rental Violin Crack Repair

Repairing 3 cracks in one of our rental violins.

violin_crack1violin_crack2

Left Pic – 2 cracks in the top, on the lower right side
Right Pic – Small cleat super-glued to clamp. This cleat will be glued to the underside of the crack through the F-Hole. The super glue will pull away from the clamp, leaving the cleat glued underneath the crack



violin_crack3violin_crack4

Left Pic – 2 Clamps w/cleats ready to go inside
Right Pic – 2 Clamps going through the F-Hole. 1 Clamp drawing the crack closed



violin_crack5violin_crack6

Left Pic – Gluing a small crack near the F-Hole
Right Pic – Another view of same crack

Broken String Bass End Pin

cellopeg1cellopeg2

Left Pic – Broken String Bass End Pin with part of it still stuck inside
Right Pic – How else would you get out a broken bass end pin….a valve slide expander, of course…

cellopeg3cellopeg4

Left Pic – I just slid it in, tightened the knob to expand the end a bit, and pulled the broken piece out
Right Pic – Replacement end pin is too big; it will need to be trimmed down

cellopeg5cellopeg6

Left Pic – Chucked up in the lathe and slowly trim down the taper
Right Pic – Checking with the calipers

cellopeg7

Left Pic – almost ready to go…final fitting was done with a band sander
