Split in Trumpet Leadpipe

This trumpet befuddled the band director(and her trumpet playing band director husband) as to why it wasn’t playing well, and how they could feel air escaping. It took me a while, but I finally found the split in the leadpipe. In normal light it was very hard to see the split. Here’s how I fixed it:

split1 split2

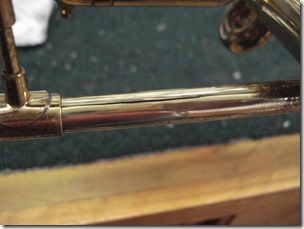

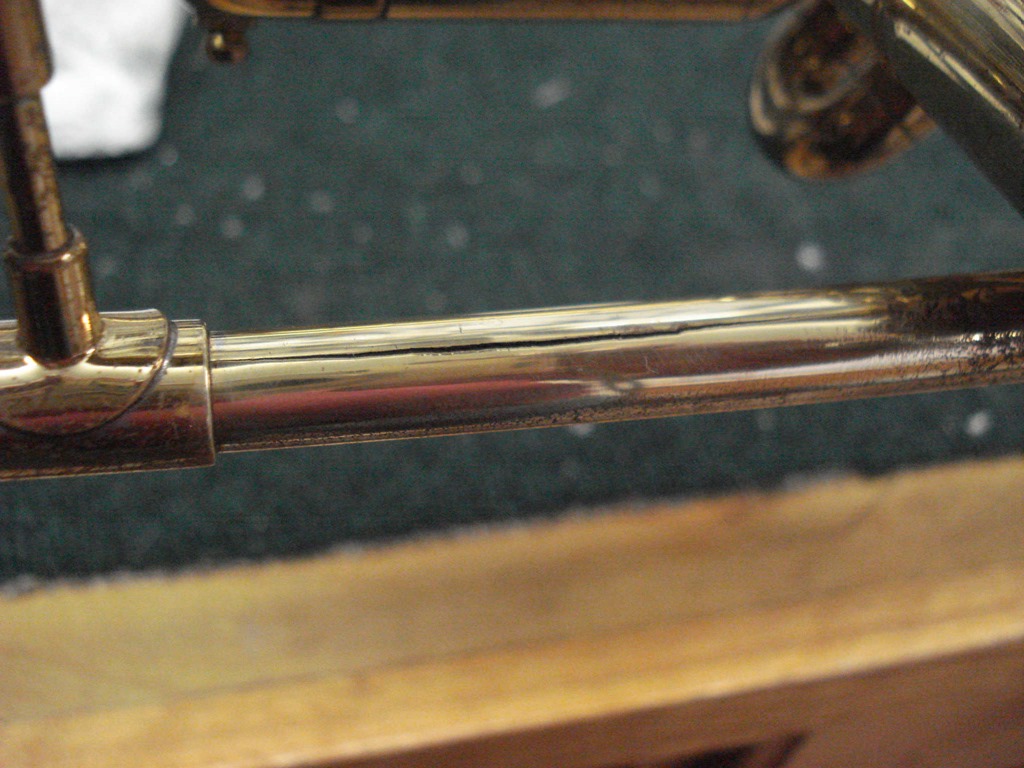

Left Pic – Split in leadpipe…about 3 inches long

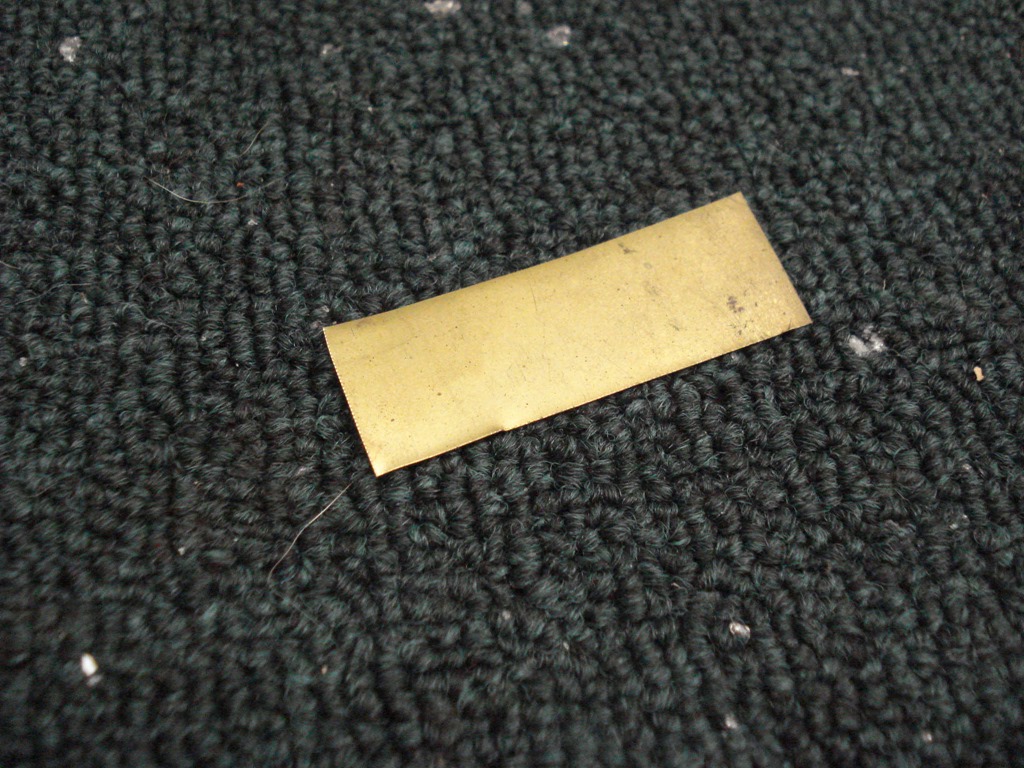

Right Pic – Sheet brass patch after cutting to preliminary shape



split3split4

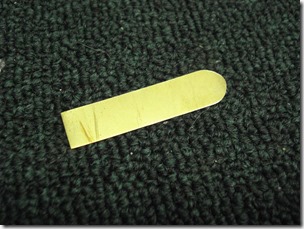

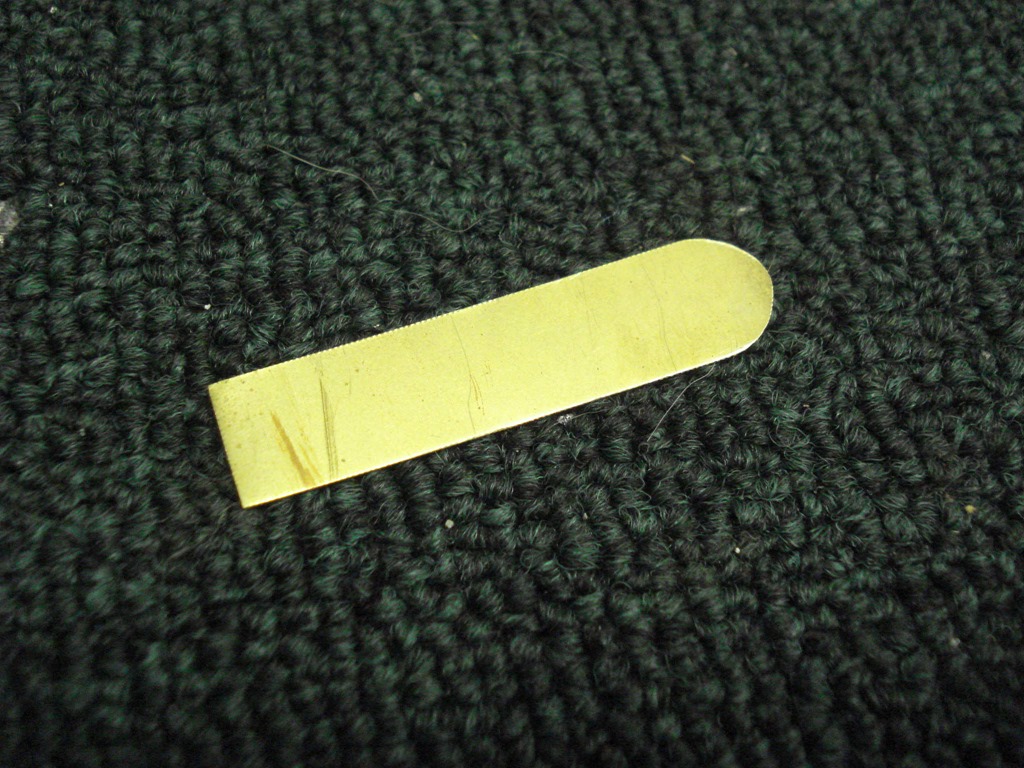

Left Pic – Patch cut to final shape

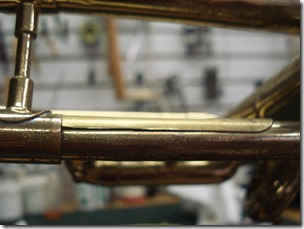

Right Pic – Lacquer removed and patch bent to contour of leadpipe



split5split6

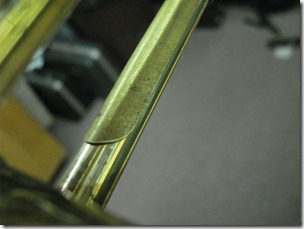

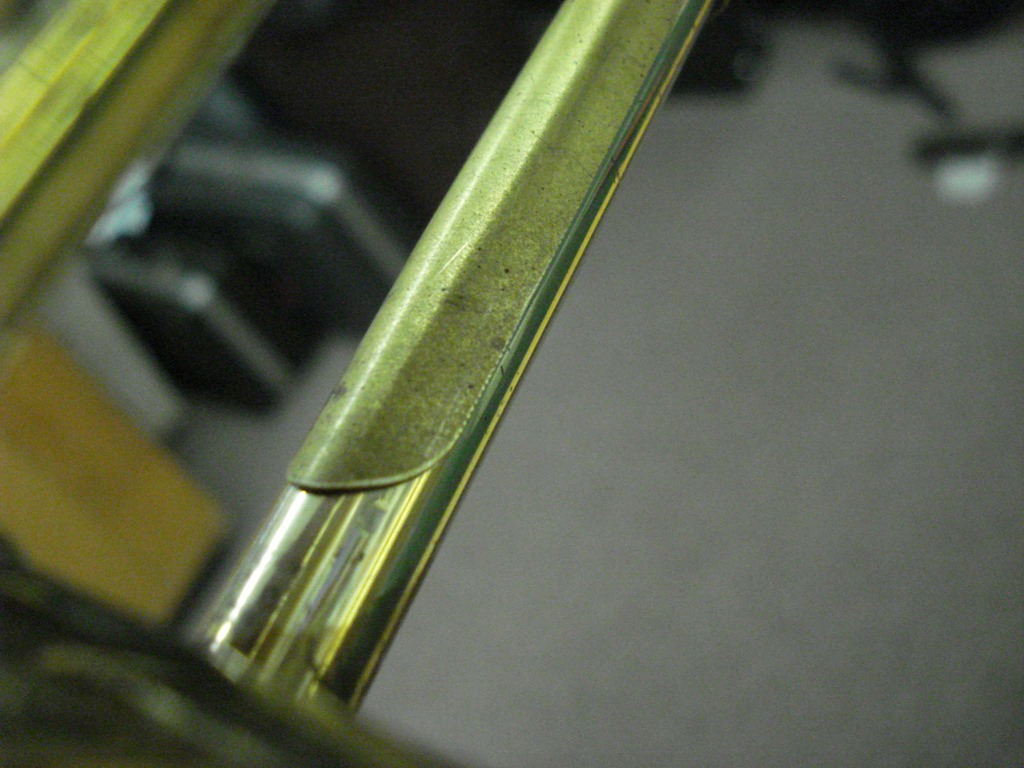

Left Pic – Other view of patch contoured to fit

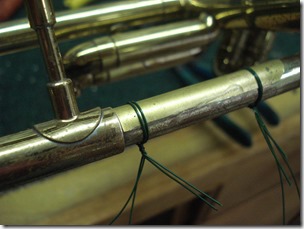

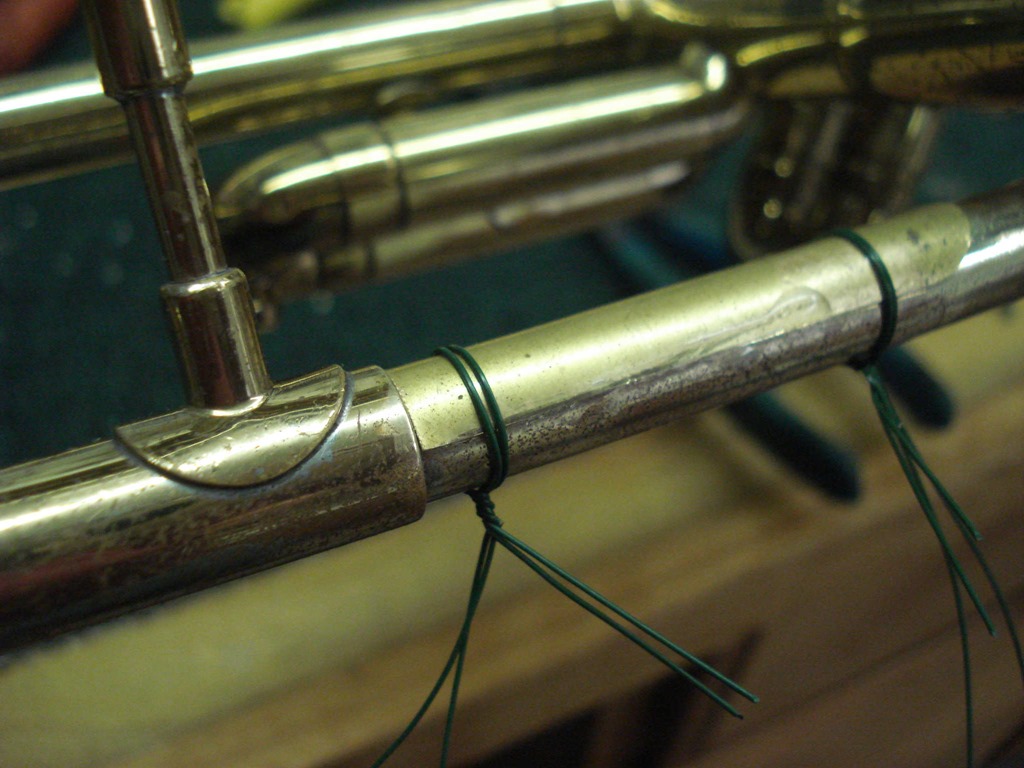

Right Pic – Wire tied on leadpipe, prior to soldering



split7split8

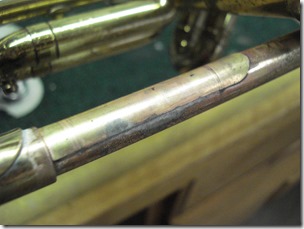

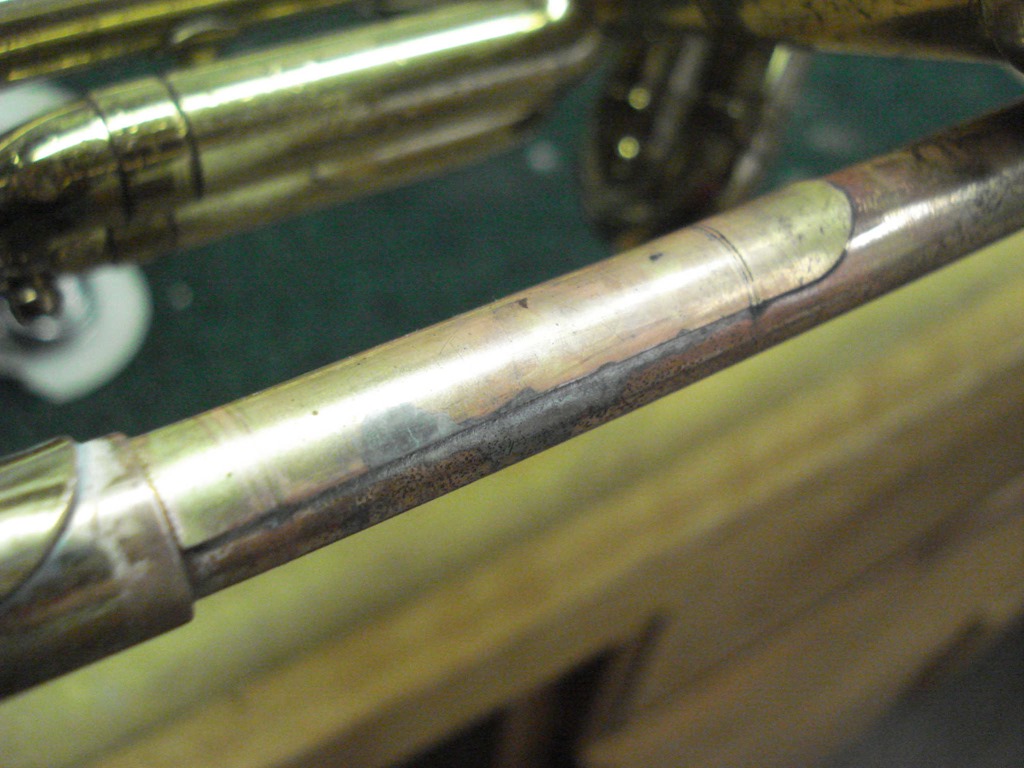

Left Pic – Soldered, but not cleaned up

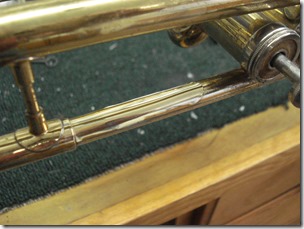

Right Pic – Buffed and ready to go
